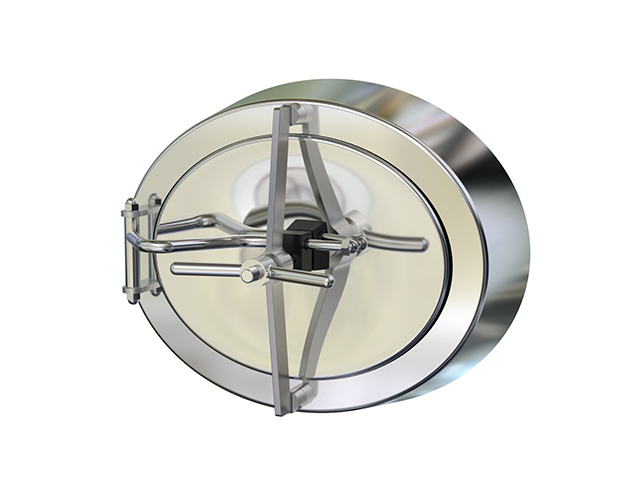

WZC-B Oval Inward manway with bevel edge
Product Type: Manway
Product Info: WZC-B Oval Inward manway with bevel edge

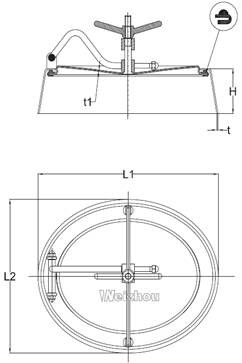

Oval Inward manway with bevel edge
|
OD mm L1*L2
|
Frame T1 mm
|
H mm
|
Cover T2 mm
|
Pres. Bar
|
|
555*455
|
5
|
80
|
4
|
0 - 4
|
|
565*465
|
5
|
100
|
4
|
0 - 4
|
|
580*480
|
5
|
133
|
4
|
0 - 4
|
|
608*508
|
5
|
200
|
4
|
0 - 3
|
|
Height and Frame T can be chnaged accoring to your requirment.
Gasket: Silicone/EPDM/NBR/FPM in accordance with FDA 177.2600.
Material: 304(1.4301),316L(1.4404)
Internal surface: 0.8μm-0.5μm.
Outside surface: Mirror polished, Matte, sand-blasting finished.
|
|
Type
|
Size
|
Material
|
Inner Surf.
|
Outer Surf.
|
Qty
|
handl.
|
Height
|
Gasket
|
|
WZC-B
|
555*455
|
1.4301
|
0.5μm
|
Matte
|
20
|
1 Stainless
|
75mm
|
EPDM
|
