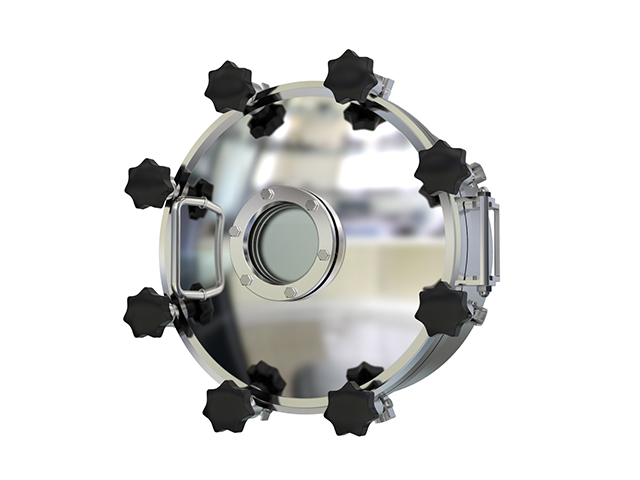

WZD Round Outward manway with Sight Glass
Product Type: Manway
Product Info: WZD Round Outward manway with Sight Glass

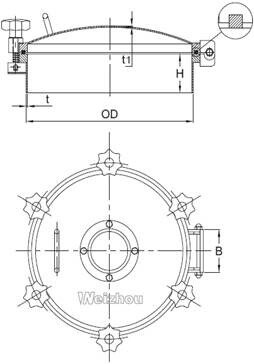

Round Outward manway with Sight Glass
|
OD mm
|
Frame T mm
|
H mm
|
Cover T 1 mm
|
Pres. Bar
|
|
200
|
3
|
100
|
3
|
0 - 3
|
|
300
|
3
|
100
|
3
|
0 - 3
|
|
350
|
3
|
100
|
3
|
0 - 3
|
|
400
|
3
|
100
|
3
|
0 - 3
|
|
430
|
3
|
100
|
3
|
0 - 3
|
|
450
|
3
|
100
|
3
|
0 - 3
|
|
500
|
4
|
100
|
3
|
0 - 3
|
|
600
|
4
|
100
|
4
|
0 - 2.5
|
|
Height and Frame T can be chnaged accoring to your requirment.
Flanged Sight Glass - Sizes: DN80/DN100/DN150
Gasket: Silicone/EPDM/NBR/FPM in accordance with FDA 177.2600.
Material: 304(1.4301),316L(1.4404)
Internal surface: 0.8μm-0.5μm.
Outside surface: Mirror polished, Matte, sand-blasting finished.
|
|
Type
|
Code
|
Material
|
Inner Surf.
|
Outer Surf.
|
Qty
|
handl.
|
Height
|
Gasket
|
|
WZD
|
3020 400
|
1.4301
|
0.5μm
|
Matte
|
20
|
6 Stainless
|
100mm
|
Transp. Si
|
