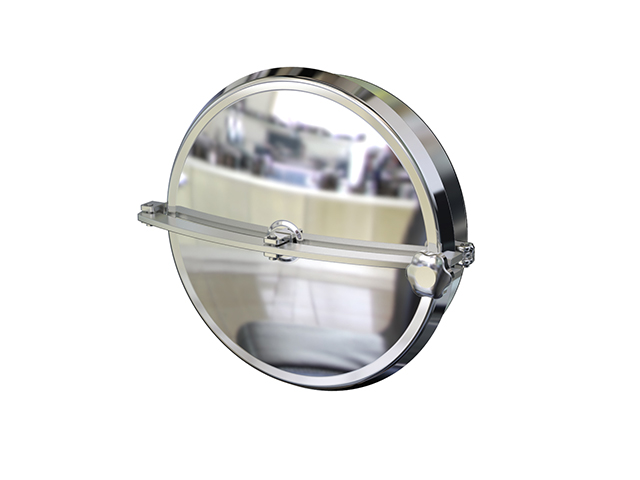

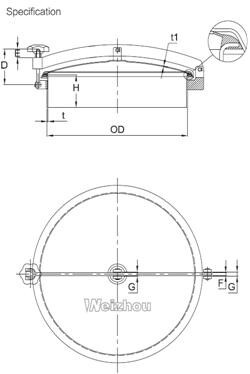

OD mm

Frame T mm

H mm

Cover T1 mm

Pres. Bar

219

2.5

100

2

0 - 0.2

300

2.5

100

2.5

0 - 0.2

350

2.5

100

2.5

0 - 0.2

400

3

100

2.5

0 - 0.2

430

3

100

2.5

0 - 0.2

450

3

100

2.5

0 - 0.2

500

3

100

2.5

0 - 0.2

600

4

100

3

0 - 0.2

Height and Frame T can be chnaged accoring to your requirment.

Gasket: Silicone/EPDM/NBR/FPM in accordance with FDA 177.2600.

Material: 304(1.4301),316L(1.4404)

Internal surface: 0.8μm-0.5μm.

Outside surface: Mirror polished, Matte, sand-blasting finished.

Type

Size

Material

Inner Surf.

Outer Surf.

Qty

handl.

Height

Gasket

WZB

400

1.4301

0.5μm

Matte

20

1 stainless

100mm

Transp. Si
