Suitable for working pressures of up to 10 Bar, at sizes (1" to 6” & DN25-DN150).

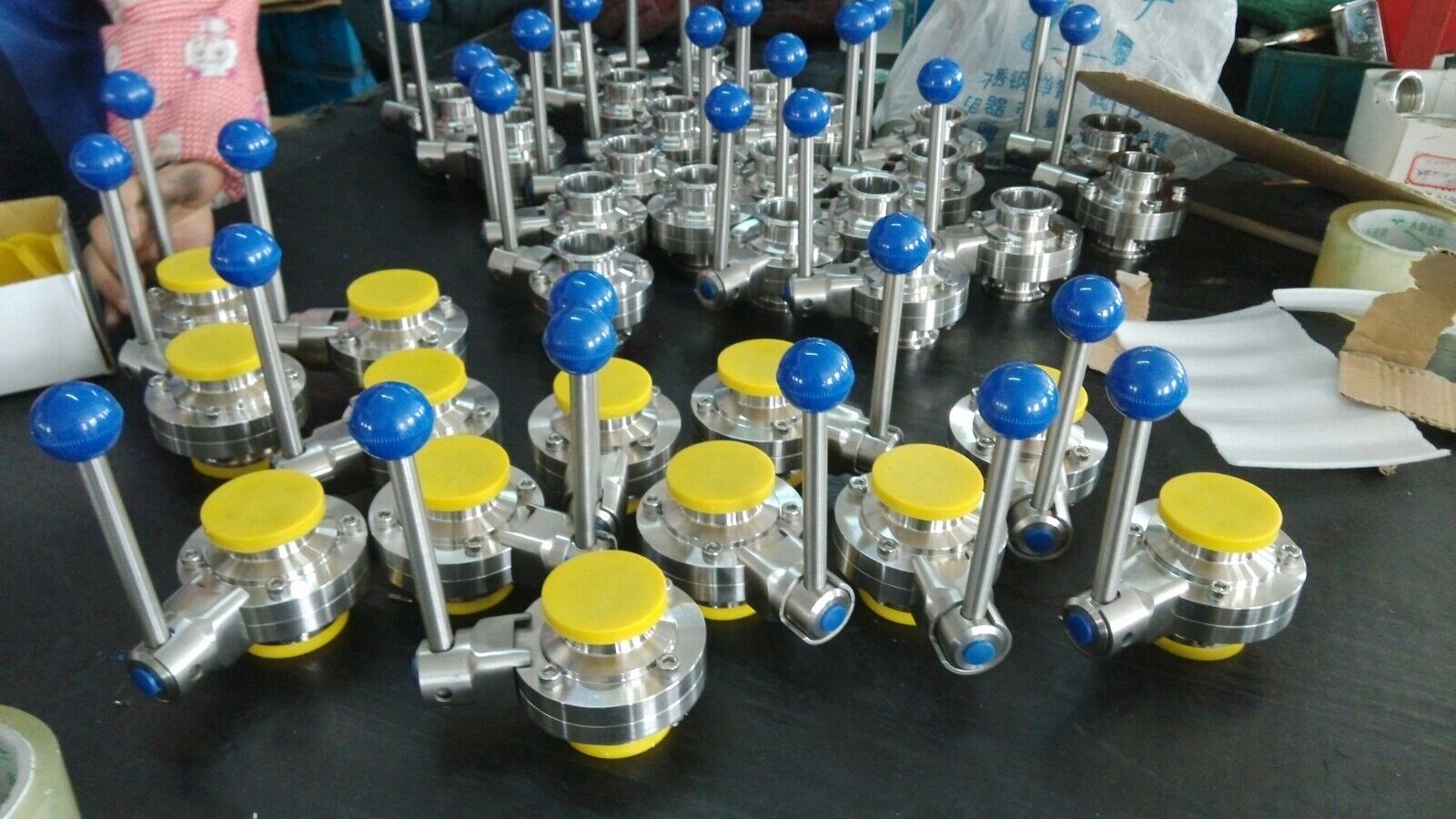

Available in 304/1.44301,316L/1.4404 stainless steel, the butterfly valve can be controlled either manually or automatically, using an actuator.

The standard actuator offered is pneumatically operated and can be single or double acting.

Alternatively, we can offer an electronic actuator option.

A full range of FDA approved seals is offered including EPDM, Silicone and encapsulated FPM seals can also be provided for some sizes.

The pneumatic actuators are offered with Control Boxes locally mounted and containing electronic feedback switches and solenoid valves.

The solenoid valves can also be mounted remotely if preferred.

A range of manual handles is also available, from the simple ABS trigger operated handle, for simple "on/off" operation, a similar stainless steel handle, a 10 position stainless steel handle and also an adjustable micrometric control mechanism to regulate your flow.

Material:

T 304 (1.4301)

T316L(1.4404)

Surface finish:

CNC machine

Size:

1 / 2 "to 6 ", DN10-DN150

Customized - upon your request

Order requirement:
