Application

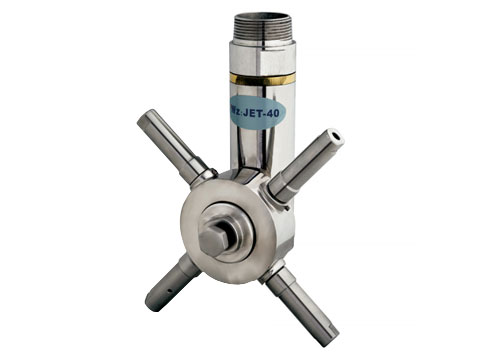

The WZJET-40 Rotary jet head is mainly used for various of tanks and vessels in breweries, beverage, food, dairy and many other hygienic industries. Various of sizes and different configurations can be suitable for any tanks size. It can provide 360 Deg. impact cleaning, which can cover any place of the tanks.
Work Principle
The flow of the cleaning fluid makes the nozzles 360 Deg. Rotation. Highest impact and lowest liquid consumption in shortest time.

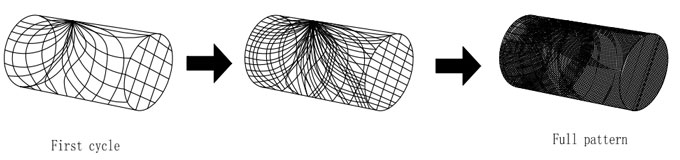

Cleaning Pattern
The above drawings showing the cleaning pattern achieved on a cylindrical horizontal vessel. The difference between the first cycle and the full pattern represents the number of additional cycles available to increase the density of the cleaning.
Features
360 Deg. Rotation, Fast, Cost-efficient, Performance reliability and long service life
Material: 1.4404(316L), 1.4301(304)

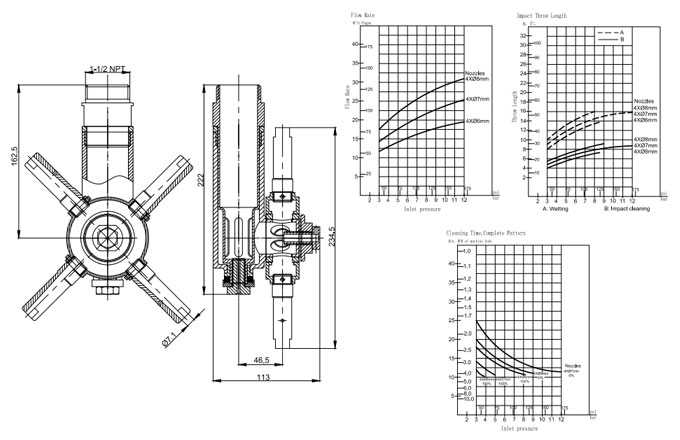

Technical Data:
Weight:
Lubricant: Self-lubricating with the fluid
Working Pressure: 3-10 bar
Recommended pressure: 4 - 6.5bar
Max. Working temperature: 95 °C
Max. Ambient temperature: 130 °C
Max throw length: 7-12m
Impact throw length: 4-9m
Standard thread: 1 1/2”(BSP) or NPT, female 2” NPT
