Round pressure manway with ful...
Round Outward manway with Pres...

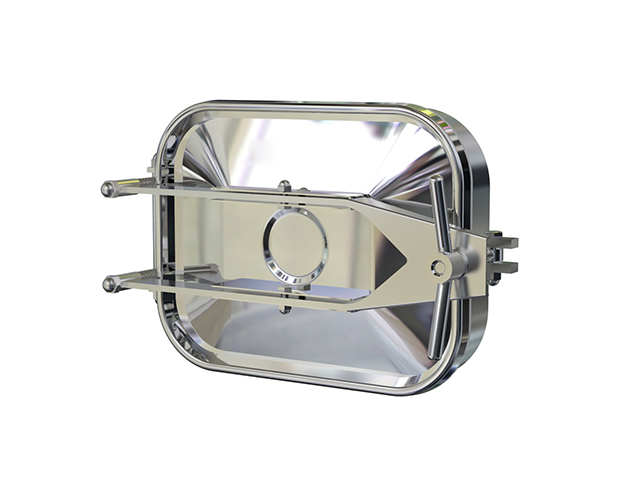

Rectangular manway with two in...
![]()
|
OD mm L1*L2 |
Frame T mm |
H mm |
Cover T1 mm |
Pres. Bar |
|||||||
235*185 |
5 |
70 |
1.5 |
0 - 0.5 |
||||||||
435*335 |
8 |
100 |
3 |
0 - 0.5 |
||||||||
535*415 |
8 |
100 |
3 |
0 - 0.5 |
||||||||
700*500 |
12 |
100 |
3 |
0 - 0.2 |
||||||||
Height and Frame T can be chnaged accoring to your requirment. Gasket: Silicone/EPDM/NBR/FPM in accordance with FDA 177.2600. Material: 304(1.4301),316L(1.4404) Internal surface: 0.8μm-0.5μm. Outside surface: Mirror polished, Matte, sand-blasting finished. |
||||||||||||
Type |
Size |
Material |
Inner Surf. |
Outer Surf. |
Qty |
handl. |
Height |
Gasket |
||||
WZE-B |
235*185 |
1.4301 |
0.5μm |
Matte |
20 |
1 Stainless |
100mm |
Transp. Si |
